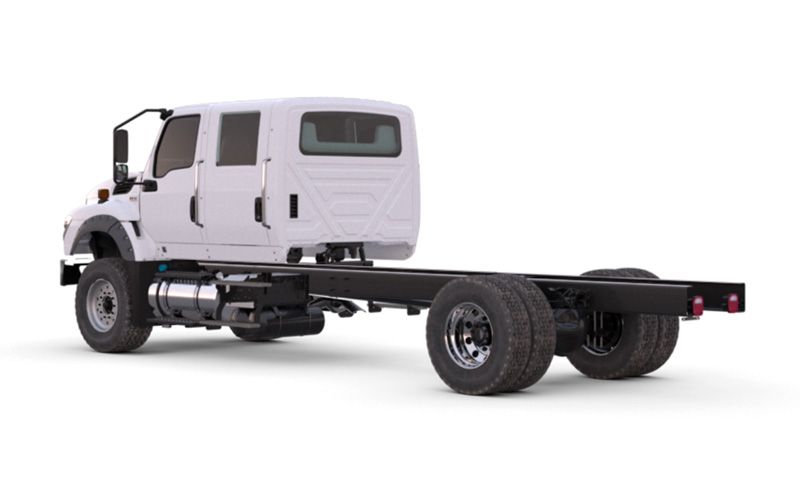

International HV™ SERIES
Request A Quote
Make & Model
Detailed Specifications
SEVERE DUTY
51,000 - 73,000 lbs.
4x2, 4x4, 6x4, 6x6, 8x6 Tridem
Classic, Diamond
Day Cab, Extended Cab, Crew Cab (no sleepers)
107" BBC Set-Back Front Axle, 107" BBC Set-Forward Front Axle, 113" BBC Set-Back Front Axle, 113" BBC Set-Forward Front Axle
136 - 340"
Cummins® B6.7: 200 hp, 520 lb.-ft. torque, up to 325 hp, 750 lb.-ft. torque, International® A26
Single canister after-treatment device, Frame Mounted Right Side, Back, or Under Cab Short Horizontal Tailpipe Single Vertical Tailpipe, Right Side Back of Cab
Heat Treated Alloy Steel 120,000 PSI 11.25" x .5" thick Super Single Rail
Dana Spicer: Non-Driving: 10,000 - 22,000 lbs.
Fabco: Driving: 10,000 - 22,000 lbs.
Meritor: Non Driving: 10,000 - 22,000 lbs.; Driving: 10,000 - 18,000 lbs.
Spring Multileaf: 14,000 - 20,000 lbs.
Parabolic Taperleaf: 8,000- 23,000 lbs.
Single Rear Axle (4x2) : Meritor : Single Reduction: 17,000 - 30,000 lbs., Double Reduction: 26,000 - 38,000 lbs*, Two-Speed: 21,000 - 23,000 lbs., Dana : Single Reduction: 17,500 - 31,000 lbs., Two-Speed: 19,000 - 23,000 lbs., Tandem Rear Axle (6x4) : Meritor: Single Reduction: 34,000 - 52,000 lbs., Dana: Single Reduction: 46,000 lbs.
Chalmers: 23,000 - 52,000 lbs., Hendrickson: RT: 34,000 - 52,000 lbs., HAS: 23,000* - 46,000 lbs. HMX: 40,000 - 46,000 lbs. Primaax: 20,000 - 46,000 lbs., 69,000 lbs. (Tridem), Link: 46,000 lbs., International: 20,000 - 40,000* lbs.
Manual: Eaton: 6, 8LL (10), 9ALL (11), 13, 15, 18 speed *, Automated Manual: Eaton UltraShift PLUS: 10, 11, 13, 18 speed, Eaton Fuller Advantage: 10 speed, Automatic: Allison Automatic: EVS, RDS, HS series * (HVMRD 6, 10, 11, and 13 only)
Air Disc Brakes with ABS, Optional Traction Control, Optional Electronic Stability Program with Traction, Air Disc Brakes
40 - 120 Gallons, Single or Dual, Non-Polished or Polished Aluminum, Mounted Right or Left Side Under Cab
Halogen
Single Gear Power, Dual Gear Power on Front Axle 16,000 lbs. And Above
Continental, Michelin, Goodyear, Bridgestone
Description
HV507
The new HV507 from International® has the uptime, productivity and safety needed to deliver on the most demanding jobs. Its standard wide-track front axle provides excellent maneuverability, and its compact 107″ BBC and set-forward axle configuration is ideal for weight-sensitive bridge formula applications. The HV507 features a new, roomier interior with a powerful new HVAC system and new controls that help keep drivers comfortable and productive over long hours on the job. The advanced and dependable Diamond Logic® Electrical System offers custom, user-programmable interlocks to enhance operator safety. Whether you’re restoring power following a major storm, clearing the way after a heavy snowfall or performing other key roadwork, the HV507 is a hard-working addition to your fleet.
Applications:
Municipal plow
Construction dump
Bridge formula applications
4X4 Fire and emergency
HV607
Uptime is upfront in every aspect of the new International® HV607. It boasts a 0.5″ super single frame rail that’s stronger, lighter and more corrosion-resistant than reinforced rails. It features a double-sided galvanized steel cab and a new, roomier interior that’s designed to optimize your crew’s comfort and productivity. They’ll operate with optimal safety thanks to an industry-leading Diamond Logic® Electrical System that now includes up to 30 easy-to-operate programmable switches. Drivers will also appreciate enhanced visibility and a more maneuverable 107″BBC with a wide-track, set-back front axle.
Applications:
Construction dump
Refuse
Platform stake/crane
Wrecker
HV513
Everything about the new HV513 is designed to optimize your uptime. It’s powered by a new International® A26™ engine that’s built from the block up to redefine efficiency, performance and durability. It includes the easily programmable, time-saving capabilities of Diamond Logic®, the industry’s most advanced electrical system. The HV513 also features a roomier interior with a best-in-class new HVAC system to keep both driver and crew focused, comfortable and productive for long hours on the job. The HV513 features a 113″ BBC with a wide-track, set-forward front axle providing the flexibility to deliver for your fleet in hundreds of applications.
Applications:
Concrete Mixer
Crane
Roll-off
Heavy Construction Dump
HV613
International® trucks have always answered the call for the toughest jobs around. Now there’s a new breed of vocational truck that redefines the standard for uptime and productivity. Introducing the new International HV™ Series. The HV613 offers the superior maneuverability of a set-back, wide-track front axle. It also includes the industry standard for operator safety, versatility and dependability in its Diamond Logic® Electrical System. Plus, the HV613 reaches new levels of uptime, efficiency and performance with its advanced new A26™ engine and new interior that includes new, driver-focused controls and a new class-leading HVAC system.
Applications:
Refuse
Heavy Construction Dump
Recovery
Concrete Mixer
