Western Star 49x
Request A Quote
Make & Model
Detailed Specifications
X series
Detroit® DD15®, 400-505 HP, 1550-1850 lb-ft
Detroit® DD16®, 500-600 HP, 1850-2050 lb-ft
Cummins X12, 350-500 HP, 1450-1700 lb-ft
Cummins X15, 400-605 HP, 1450-2050 lb-ft
Detroit® DT12®-V and Detroit® DT12®-VX
Allison Automatic 4000, 4500, 4700
Eaton Fuller Manual 10- 13- 18-speed; 8LL and 9ALL
Eaton Ultrashift PLUS and Endurant AMT
Radiator-mounted steel grille with stainless steel surround
Engine mounted air intake, plus optional hood-mounted pre-cleaners deliver improved dust capacity
Best-in-class HVAC with 5 face outlets, 4 floor outlets, 2 sidewindow defrost outlets and 10 blower speeds
Available only on sleepers, optional Idle-Free Dual HVAC that provides up to 10 hours of cooling or 34 hours of heating when parked
Detroit® single 12,000-23,000 lbs
Meritor single 12,000-22,000 lbs
Detroit® single 12,000-23,000 lbs
Detroit® tandem 40,000-44,000 lbs
Dana tandem 52,000-60,000 lbs
Meritor single 21,000-30,000 lbs
Meritor tandem 40,000-58,000 lbs
Meritor tridem 69,000-78,000 lbs
Flatleaf 14,600-23,000 lbs
Taperleaf 12,000-20,000 lbs
AirLiner® single 21,000-23,000 lbs
AirLiner® tandem 40,000-46,000 lbs
AirLiner® tridem 69,000 lbs
Chalmers tandem 40,000-70,000 lbs
Flatleaf single 23,000-30,000 lbs
Hendrickson tandem 40,000-52,000 lbs
Neway single 26,000 lbs
Neway tandem 46,000-52,000 lbs
Neway tridem 69,000-78,000 lbs
TufTrac tandem 40,000-52,000 lbs
WABCO® 4S/4M and 6S/6M Anti-lock Braking System (ABS) with and without traction enhancement
Air Disc Brakes
Aluminum 25" cylindrical, plain or polished
LH 60-150 gallon (227-568 liter)
RH 60-, 70-, 80-, 100-, 120-, 150-gallon (227-, 265-, 303-, 379-, 454-, 569-liter)
Standard forward mounting; optional aft mounting
LH and RH split fuel/hydraulic tank options available
LH and/or RH auxiliary fuel supply and return ports available
Description

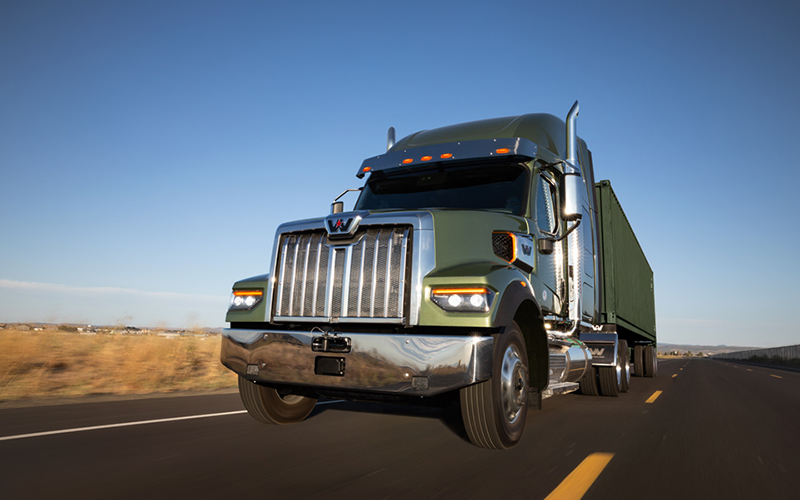

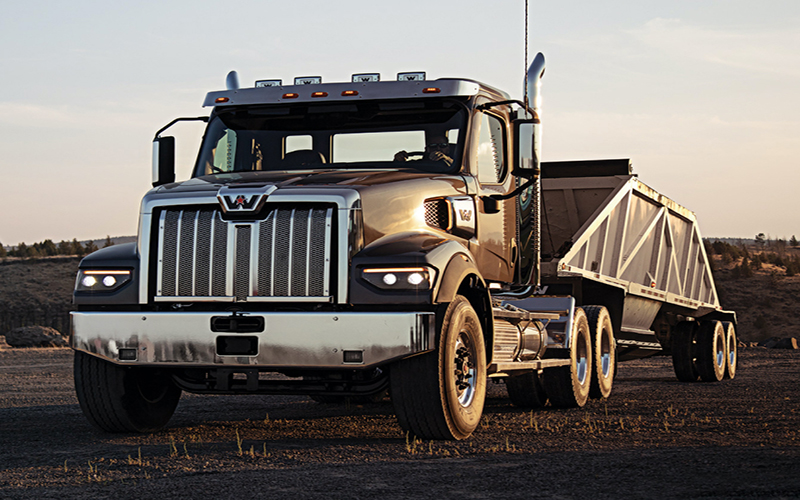

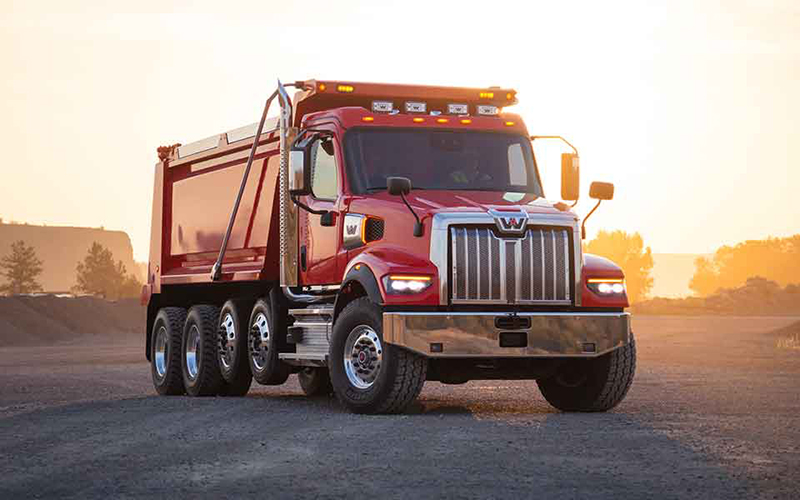

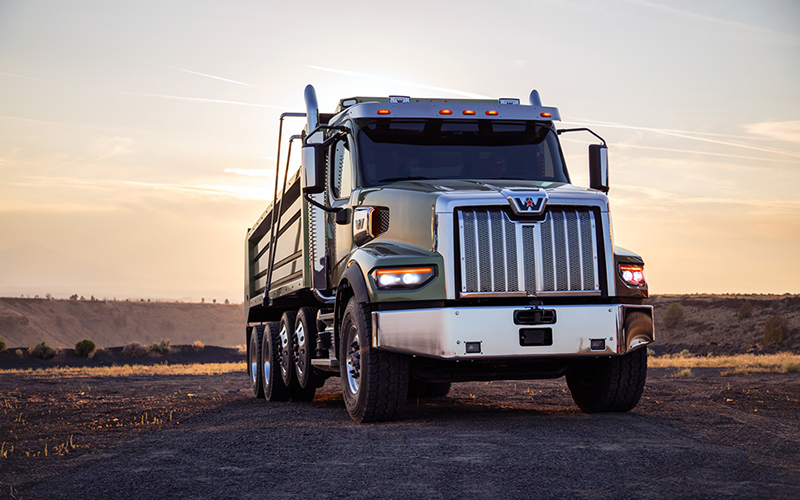

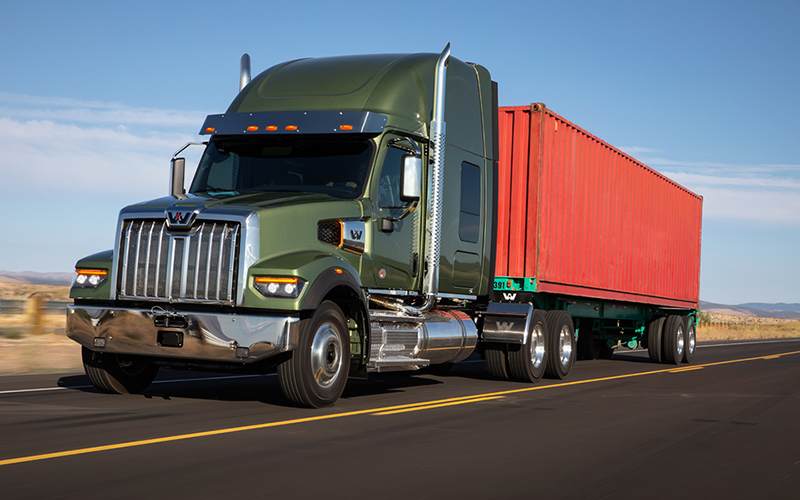

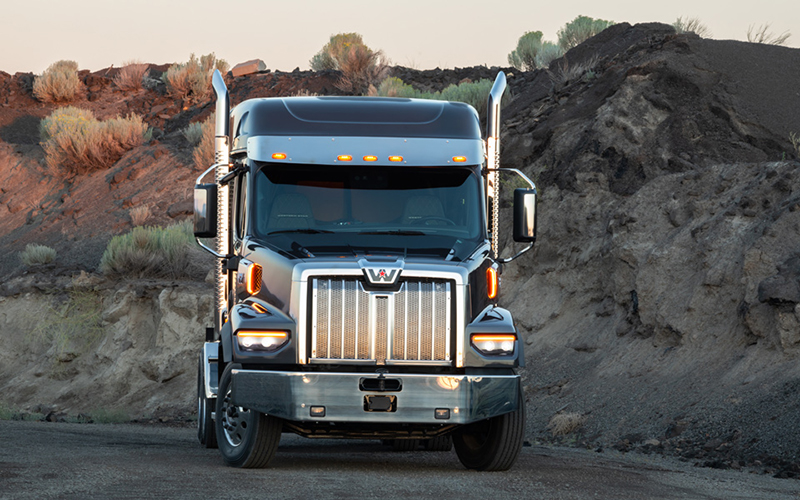

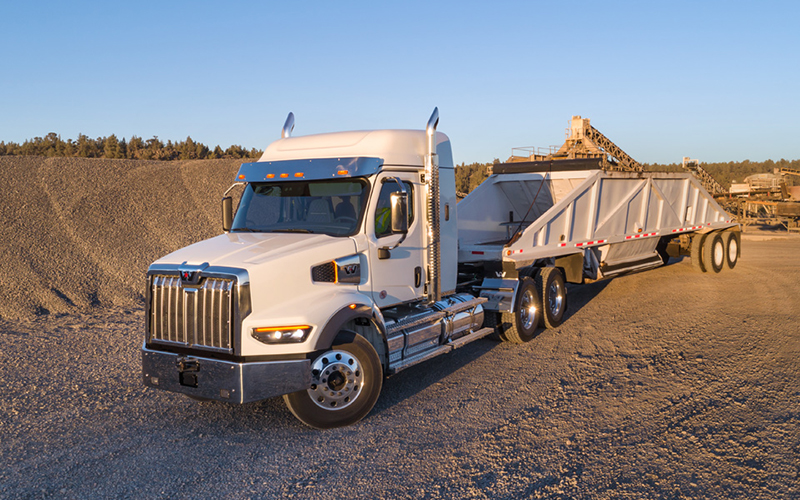

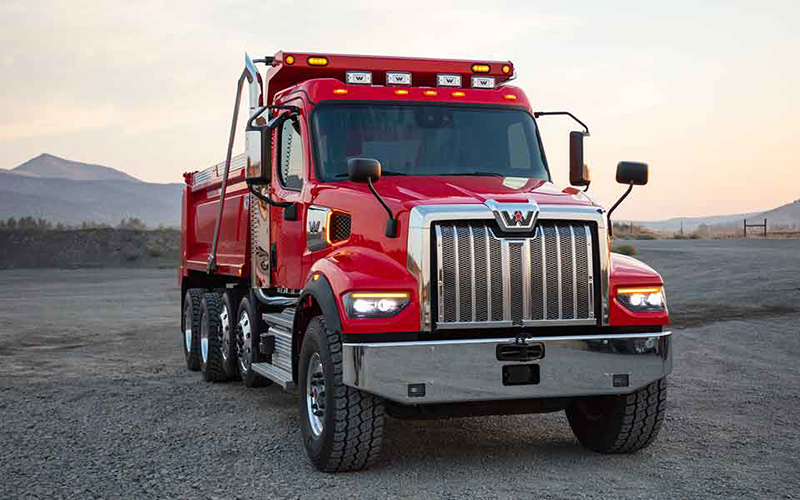

Introducing what isn’t just the best truck we’ve ever built, but what might be the best truck anyone has ever built. The entire X-Series line of trucks was built from the ground up to bring toughness into the modern age with an impressive collection of engineering, technology and more than half a century of experience building trucks that take on any challenge, anywhere. So, whether you need a rugged vocational truck or a semi truck, and whether you’ve owned Western Star for years or will for the first time, it’s time to break new ground with the 49X.
